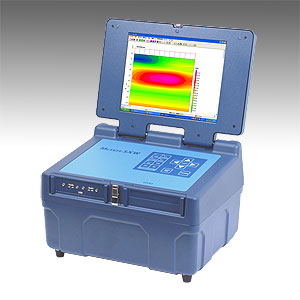

● McSEIS-SXW receives surface-waves, which are generated by artificial sources such as sledge
hammer, with 12 or 24 geophones. You can easily survey the underground without using large scale
of source like dynamite or vibrators.
● The effective depth for survey is up to approximately 20 meter from the surface of the ground with
easy-to-use geophones (4.5Hz).

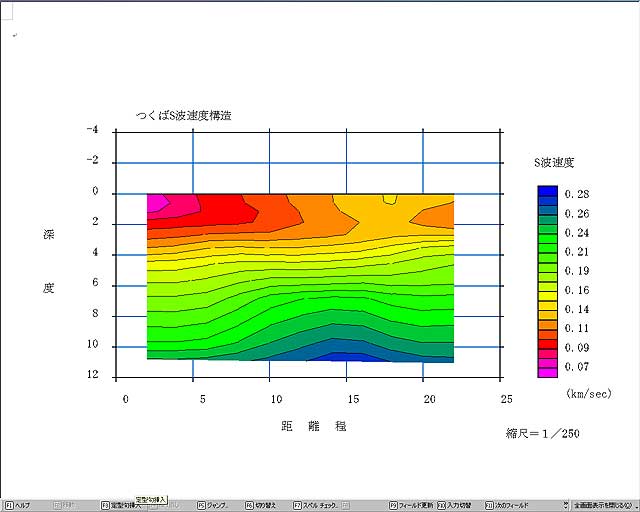

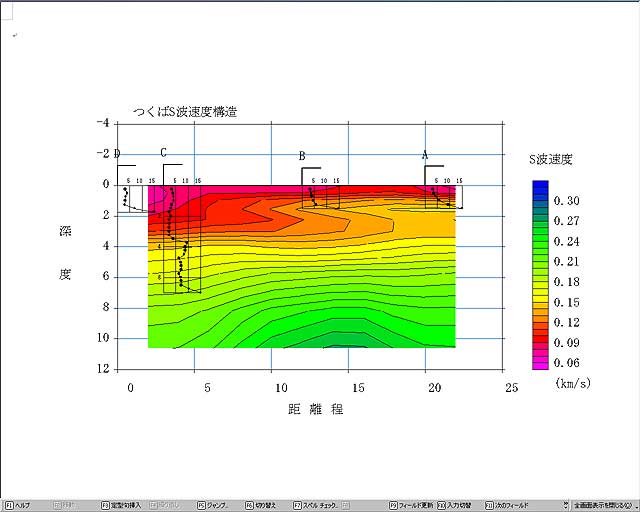

● Our original technique “CMP Analysis” has been succeeded in improving the data accuracy of
horizontal resolution and monitoring S-wave velocity model in 2D.
● With the installed software, you can analyze the underground automatically.

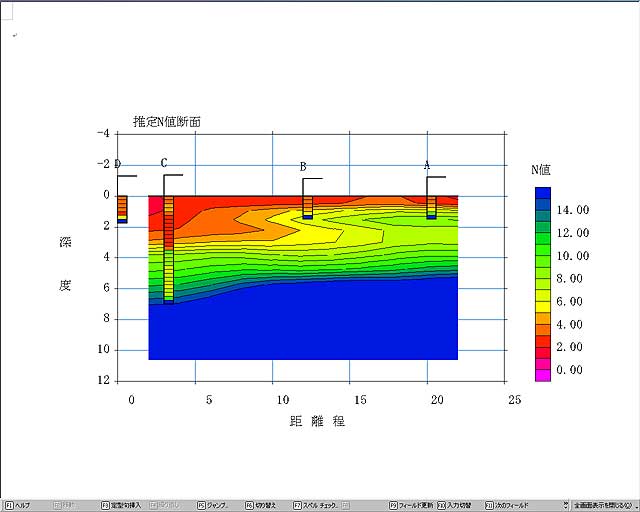

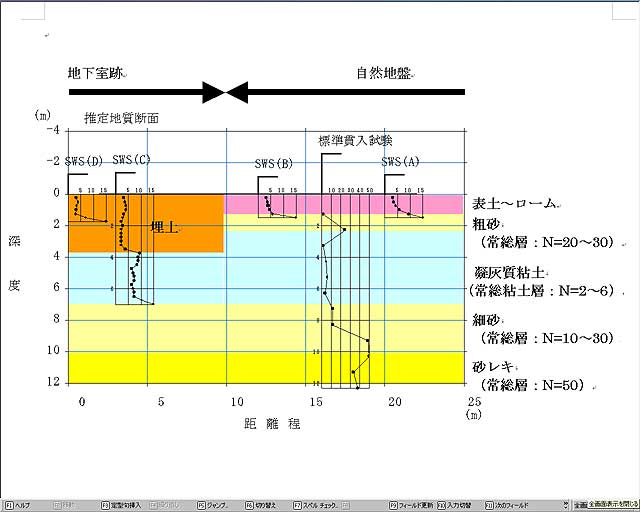

● The estimated N-value structures can be figured by inputting N-value which was measured with the
method of Swedish Weight Sounding, SPT or Ram Sounding.
● Softwares for PC are also available (optional).
● McSEIS-SXW is widely available for various purpose of investigation for such as housing-site
investigation, earthquake resistant study, for judgement of soil improvement and so on. |
